HUANANZHI Gaming PC X99-AD4 Motherboard Xeon 2678 V3 2680 V4 CPU Cooler 4*16G RAM 500G M.2 SSD GPU GTX1660 6GD5 750W PSU PC Case
HUANANZHI Gaming PC X99-AD4 Motherboard Xeon 2678 V3 2680 V4 CPU Cooler 4*16G RAM 500G M.2 SSD GPU GTX1660 6GD5 750W PSU PC Case
HUANANZHI Gaming PC X99-AD4 Motherboard Xeon 2678 V3 2680 V4 CPU Cooler 4*16G RAM 500G M.2 SSD GPU GTX1660 6GD5 750W PSU PC Case
HUANANZHI Gaming PC X99-AD4 Motherboard Xeon 2678 V3 2680 V4 CPU Cooler 4*16G RAM 500G M.2 SSD GPU GTX1660 6GD5 750W PSU PC Case
HUANANZHI Gaming PC X99-AD4 Motherboard Xeon 2678 V3 2680 V4 CPU Cooler 4*16G RAM 500G M.2 SSD GPU GTX1660 6GD5 750W PSU PC Case

HUANANZHI Gaming PC X99-AD4 Motherboard Xeon 2678 V3 2680 V4 CPU Cooler 4*16G RAM 500G M.2 SSD GPU GTX1660 6GD5 750W PSU PC Case

Regular price $629.31

ONLY LEFT

ONLY LEFT

SPECIFICATIONS

Brand Name: HUANANZHI

Origin: Mainland China

Application: Processor

Compatible CPU: INTEL AMD

Fan Life: 50000 hrs

Model Number: A600

Heatsink Material: aluminum

Fan Size: 120x120x25mm

Package: Yes

Certification: CE

Bearing: Ball Bearing

Lines: 1 Lines

Type: Heatpipe

Power Interface: 4PIN







Attention pls!!!

1: "Contact for others" option is for buyers who need other custom made products, please do not make order directly by this option without communicating with us in advance!!!!!!!

Buyers who need custom made products would firstly contact and let us know what products they need, then we will tell them price, if the price is ok for them, we would adjust the displayed price of this option for them to make order.



2: If you insist to make order directly by this option without communicating with us in advance, we would send you message and repeat the words above and below, if you neither reply to us nor make order cancellation request within 24 hours, according to Aliexpress rules, we could not be able to randomly ship an item to you but let Aliexpress cancel your order and give you refund. Thank you for understanding and support.




Manufacturer(HUANAN company)statements


>>Due to different production batches, our motherboards may probably have slightly different design, such as different color of memory slots, different position and color of SATA ports, different motherboard versions etc,.....  They dont have any function difference.Pls in kind prevail, HUANAN companywill not make any further notice.

WUSON store statements

1: What in the package?

HUANANZHI X99-AD4 LGA2011-3 motherboard with dual M.2 SSD slot;

DIY-CPU Xeon E5 2660 V3/2670 V3/2678 V3/2680 V3/2680 V4 etc.;

4*16G DDR4 2400 REG ECC RAM;

Samsung 970EVO PLUS 500G M.2 NVME SSD;

A600 4 Tubes CPU cooler;

GTX1660 6GD5 Gaming Video Card;

750W 80Plus Gold modular power supply;

PC case+case fans;

SATA cable+metal back shield+CPU cooler adapter




2: Why is it better for buyers to shoot an unpacking video when they get their packages?

>> Some buyers said that there is product missing when they opened their packages, then showed us some pictures, however, pictures can not prove anything as everybody knows, the best evidence is an unpacking video, so pls do it, which can help a lot if you happen to be in the same situation above,WUSON store does not accept pictures as evidence!!!!!Thank you for understanding.



3: All products are tested before shipping?
Yes, WUSON store has 3 technical teams for testing every working days, so we can 1000000% guarantee that all our products are working good before being sent out from our warehouse.



4: How are the products packed, will they be intactly delivered?
Fristly, WUSON store places CPU in motherboard socket, wraps memory bars with bubbles and places them in motherboard original box; Secondly, WUSON store wraps motherboard with much bubbles and places it in the original box; Thirdly, WUSON store wraps the motherboard original box with bubbles, then puts it in a cardboard box. So we are confident to say, normally all our products can be intactly delivered.



5: Will all packages be surely delivered within the time set by Aliexpress?

Surely not.The most intangible thing is transportation,the majority of parcels can be deliveredwithin the required time, butnobody can guarantee that all parcels can be delivered within the time, sometimes some parcels are delayed with specified reasons such as bad weather/holiday/post office staffs strike/custom clearance delay etc.  Sometimes there is no any reason. Pls refer to the "delivery time announcement" below.  So pls think about it before you make order, as long as you make order, that means you understand everything above.



6:Do buyers need to send products back if they dont work or stop working?

WUSON store does provide100% genuinewarranty service, andwe have allthe powerto determine whether buyers need to send products back to us or not. But that does not mean our products are unreliable, in factas we state instatement3 above, we strictly testALLour products before shipping without any doubt, so normally the greatmajority of buyers are satisfied with our products and some of them have become our regularcustomers. Besides, according to what weexperienced before,many our products worked fine afterthey were sent back by buyers, but they did not work when buyers tested them, that's pertty weird, moreover,some buyerssent our products back without any additional protection, they just put our motherboards in the original box, thenput the box in a mail bag without any bubble protection(many buyers knowwe wrap our motherboard and box with much bubble and put ourmotherboard original box in an external cardboard box), butthe products still worked fine after a long journey,I think we dont need to explain too muchon it.


>> If our products dont work the minutewhen buyersget them or they stop working within half a year from the time buyersmake order,the answer is 100% YES.  Especially the time when buyersjust get them andstart testing.

WUSON store has all the power to ask buyers to return products either for exchange or refund.


>> If our products stop working after it has been in use for more than half a year,the answer is uncertain. WUSON store would evaluate the products condition first according to the evidence buyers provide, then make decision of whether we need buyers to send it back or we directly send another one out.


Dear customers, if you make order at WUSON store, it means you 100% agree on these statements above.




FAQs(being updated continually)

1:What is the motherboard version?

The motherboard version is not always the same as the manufacturer would update it every now and then, so the motherboard version varies from time to time due to different production batches.

WUSON store normally would ship the latest version, pls in kind prevail,we will not make any further notice.


2: Why is there no image display on the monitor?

Pls firstly check whether the motherboard speaker beeps or not, if it beeps, it must be the video card or monitor problem, if the speaker does not beep, then pls check whether the CPU cooler spins or not, whether the LAN port light is on or off? If it spins and the LAN port light is on, its still the video card or monitor problem, but if the LAN port light is off, pls wipe all memory sticks with eraser, and then install only ONE memory stick in any one of the memory slots, start the PC.


3: Do motherboards support overclocking? Do they support SLI and Crossfire?

Responsibly speaking, WUSON store does not recommend buyer to do overclocking, which would probably bring damage to hardware, so of course we dont test overclocking and we also dont have BIOS version that supports overclocking, but some buyers said that they did overclocking on our X79 motherboards after flashing BIOS. X58 boards dont support overclocking but turbo boost. Only HUANAN ZHI deluxe X79 board supports Crossfire.


4: Why does the motherboard temperature sensor sometimes work abnormally?

Yes, sometimes the motherboard temperature works abnormally, so it gives wrong temperature information on motherboard and CPU, but actually motherboard and CPU are not that hot, otherwise your computer would automatically shut down.  HUANAN company technicians are still working to figure it out.



Product details

Motherboard:

Brand: HUANANZHI

Condition: Entirely new

CPU socket: LGA 2011-3

Motherboard model: X99-AD4

Structure: ATX

RAM slots: 4*DDR4

Max memory supported: 128G DDR4 1866/2133/2400

Power ports: 1*8pin/1*24pin

Audio port: 5*3.5mm port

LAN port: 10/100/1000Mbp/s

Integrated video card: No

Interfaces: 1*RJ45/1*PS2/8*SATA3.0/4*USB2.0/4*USB3.0/2*PCI-E x16/2*PCI-E x1/1*PCI-E x4/1*M.2 PCI-E NVMe/1*M.2 NGFF

Motherboard dimension: 283*215mm

Motherboard weight(including package): 1.75kg or so

Note:

1: The CR2032 battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom

2: Some motherboards may have little scratches or thermal paste or finger print on the metal bracket or other metal parts, this is normal, they could be caused in assembly at workshop or during testing. It does not mean they are refurbished, all WUSON store motherboards are full new as we stated.

3:On the basis of not bringing function changes to the motherboard, the factory would probably improve the motherboard external design, which would probably lead to some appearance difference between batches, please refer to the real-life object.




CPU:

Chip: Intel Xeon E5 2660 V3(10 cores/20 threads)

Main frequency: 2.6GHz

Plug Type: LGA 2011-3

Third level cache: 25MB

Technology: 22nm

TDP: 105W

Note:

1: Non-new CPU, in good condition, 1 year warranty

2: There may be some small physical scratches on the surface of the CPU, this is quite normal

3: All CPUs are strictly tested by WUSON store quality control teams





CPU:

Chip: Intel Xeon E5 2670 V3 (12/24 thread cores).

Main frequency: 2.3GHz

Plug Type: LGA 2011-3

Third level cache: 30MB

Technology: 22nm

TDP: 120W

Note:

1: Non-new CPU, in good condition, 1 year warranty

2: There may be some small physical scratches on the surface of the CPU, this is quite normal

3: All CPUs are strictly tested by WUSON store quality control teams





CPU:

Chip: Intel Xeon E5 2678 V3 (12/24 thread cores).

Main frequency: 2.5 GHz

Plug Type: LGA 2011-3

Third level cache: 30MB

Technology: 22nm

TDP: 120W

Note:

1: Non-new CPU, in good condition, 1 year warranty

2: There may be some small physical scratches on the surface of the CPU, this is quite normal

3: All CPUs are strictly tested by WUSON store quality control teams




CPU:

Chip: Intel Xeon E5 2680 V3 (12/24 thread cores).

Main frequency: 2.5GHz

Plug Type: LGA 2011-3

Third level cache: 30MB

Technology: 22nm

TDP: 120W

Note:

1: Non-new CPU, in good condition, 1 year warranty

2: There may be some small physical scratches on the surface of the CPU, this is quite normal

3: All CPUs are strictly tested by WUSON store quality control teams





CPU:

Chip: Intel Xeon E5 2680 V4 2.4 GHz (14 cores/28 threads).

Main frequency: 3.3GHz

Plug Type: LGA 2011-3

Third level cache: 35MB

Technology: 14nm

TDP: 120W

Note:

1: Non-new CPU, in good condition, 1 year warranty

2: There may be some small physical scratches on the surface of the CPU, this is quite normal

3: All CPUs are strictly tested by WUSON store quality control teams




Memory:

Brand: SK Hynix/Micron/Samsung/Kingston etc.

Condition: Used

Capacity: 4*16G

Frequency: DDR4 2400MHZ

Note:

1>Memory is not new, condition good with 1 year warranty, so if there are some scratches or spots on it, its normal;

2>We would ship memory without heatsink at default.




CPU Cooler:

Manufacturer: huanananzhi

Model: A600

Heat pipes: 4

Material: Pure aluminum

Dimensions: 120mm x 65mm x 120mm

Bearing: Hydro

Lifespan: 50000H

Voltage: 12V

Currency: 0.15 to

CFM: 20.3-42.3

Power port: 4 pins

Noise: 18-30DBA

RPM: 1200-2500




M.2 NVME SSD:

Brand: Samsung

Model: 970EVO PLUS

Condition: new

Capacity: 500G

Warranty: 3 years




Video Card:

Model: GTX1660

Condition: New

Bus width: 192bit

Core clock: 1800MHz

SP: 1408

Memory clock: 8000MHz

Output ports: HDMI/DP

Power port: 6pin or 8pin

PSU: 500W at least

DirectX: 12

Note: there are several different styles GTX1660 6GD5 video cards which include but not limited to those displayed at the end of this page, we would ship any of them at random without any further notifications.




Power Supply:

Condition: New

Power: 750W

Fan size: 14cm

AC input voltage/current range: 100V-240V/6-12A

PFC: Yes

CPU power cable: 2*4+4P

Video card power cable: 4*6+2P

SATA plug: 8

Big 4P plug: 6

Weight: 2.9KG or so

Note: Pls be noted of the AC input voltage range, if your country voltage standard is not in the range, this power supply would not work in your country unless you have power transformer.

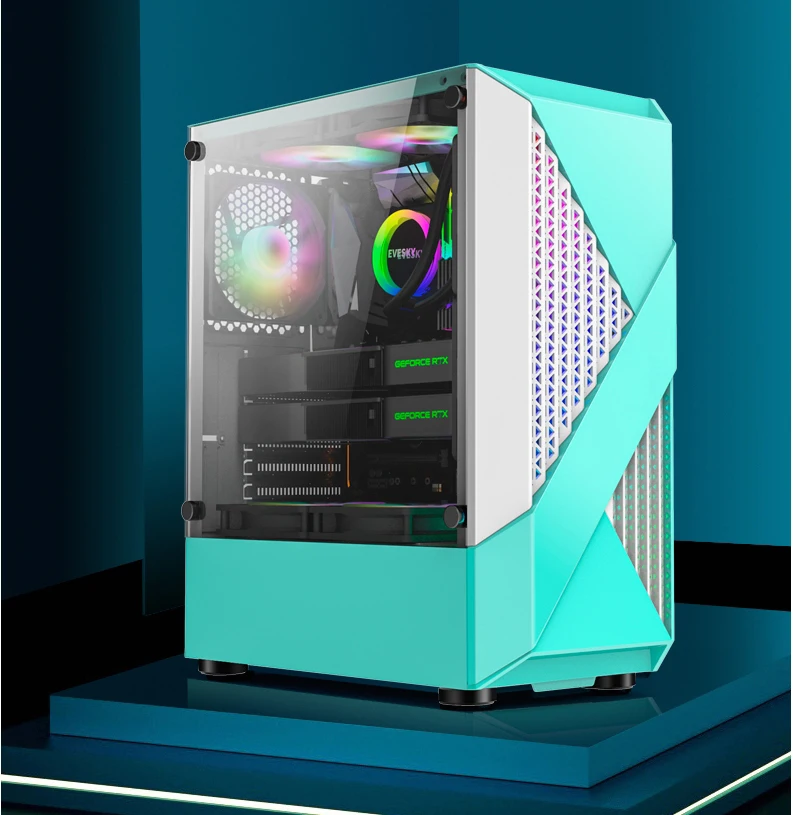

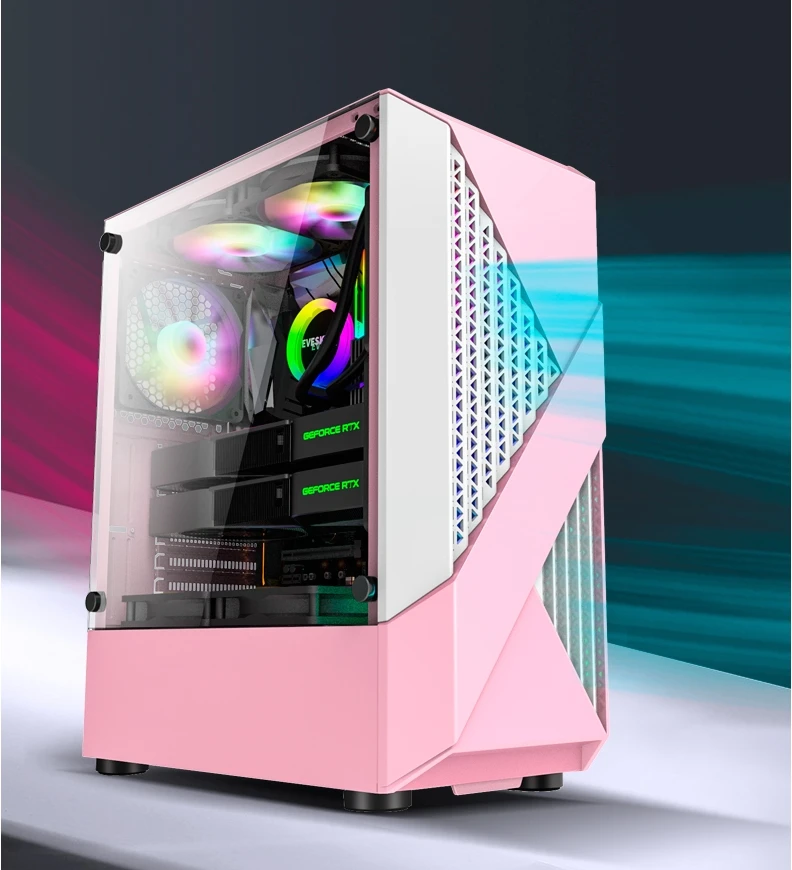

PC case:

Condition: New

Color: Black/White/Pink/Green(normally ship black if you dont have special requirement)

Style: ATX(for ATX/M-ATX/ITX motherboards)

Size: 45*38*19cm

HDD positions: 2*HDD or 1*HDD&1*SSD

PCI slot: 7

Front panel ports: 1*USB3.0; 2*USB2.0; HD Audio

Fan position: 3 front 120mm; 1 rear 120mm; 2 top 120mm; 2 PSU compartment 120mm

Video card length limitation: 320mm

CPU cooler height limitation: 165mm





Delivery time announcement:

Aliexpress askes all sellers to provide a delivery time on all shipping ways, so we, as a seller, provided buyers with an approximate delivery time on each shipping way, in most cases, the majority of parcels can be delivered within the time, however, we hope you know there are always some unpredictable problems for international transportation, the problems include but not limited to these below:

1: Your parcel is returned and we reship you another one, it takes more time;

2: Your parcel is rejected by post office or custom, it takes more time to clarify issues or transship the parcel;

3: Your parcel is detained by custom(CN custom or your country custom), it takes more time to provide files to let them release the parcel;

4: Your parcel is lost in transit and we reship another one, it takes much more time;

5: Your parcel is delayed during Chinese traditional holidays and your country traditional holidays and the international holidays, such as the Chinese traditional Tomb-Sweeping holiday; Dragon Boat holiday; Middle-Autumn holiday; Chinese national day holiday; Spring Festival holiday etc. It takes more time due to these holiday delay;

6: Your parcel is delayed due to some force majeures, which include but not limited to severe weather, natural disasters or airport problems etc. It takes more time.

And so so.............

Of course they dont usually happen, but when these transportation problems happen, the delivery time will be definitely delayed at different levels,so pls try to positively understand it and do not always take "full refund if a parcel is not delivered within the required time" as your reason to file a dispute for full refund.

We value every single buyers, we know time is money in this world, we state it here just in case of these unexpected problems, if you dont agree, pls do not make order, if you make orders, we will think you agree on these terms and conditions above, your understanding would be highly appreciated!!!

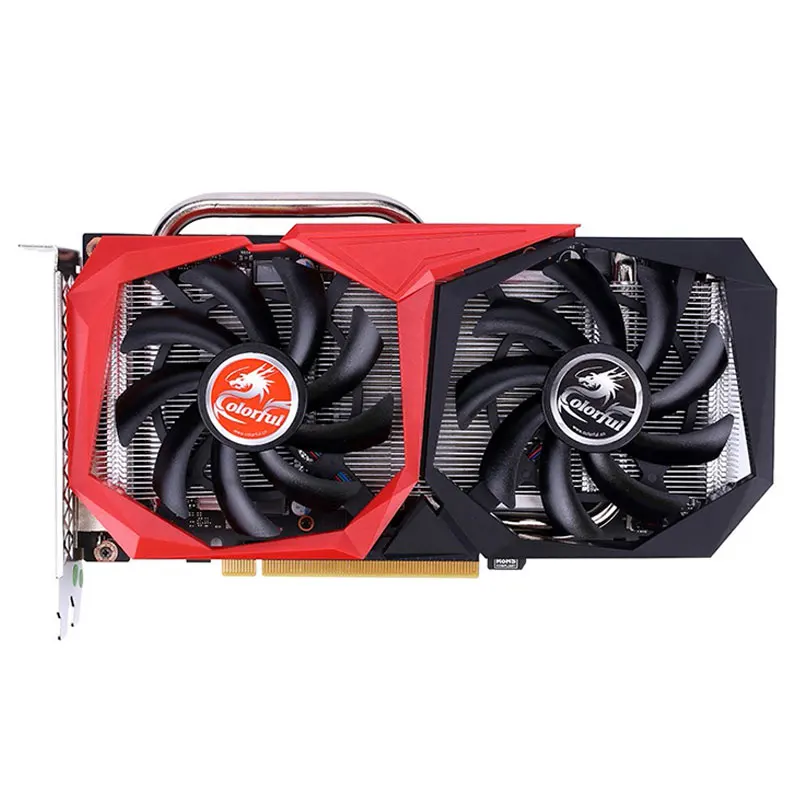

There are several different styles GTX1660 6GD5 video cards which include but not limited to these below, we would ship any of them at random.
